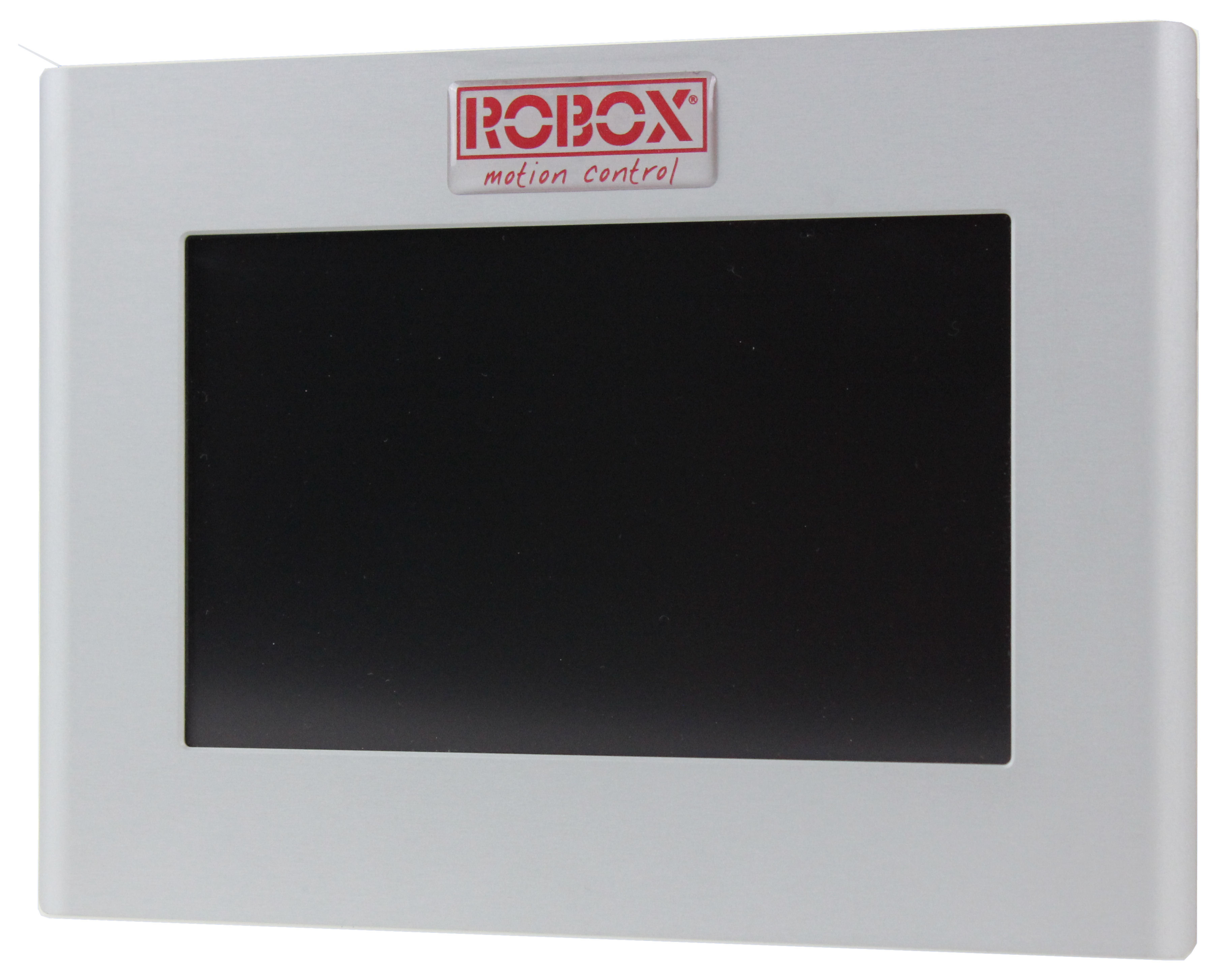

Le principali caratteristiche sono:
- Display LCD TFT 8,4″ 4:3 SVGA, 800X600 16M colori, backlight LED 350cd/m2 touch screen
- CPU ARM Cortex A8 1 GHz fanless
- Ram dinamica 512 Mbyte DDR3-800
- SD card rimovibile da 1 GB per ospitare il software applicativo
- 256 MB NAND flash interna per ospitare il sistema operativo
- 2GB eMMC interna (Solid State Disk) per ospitare il software di sistema
- n. 2 porte USB
- n. 1 porta seriale RS232/422/485
- Possibilità di connessione a tastiera/mouse esterno
- n. 1 Interfaccia Ethernet 100 Mbits/s
- n. 1 Interfaccia Ethernet 10/100 Mbits/s
- Alimentazione 24VDC
- Dimensioni mm 255x190x53,5 peso kg. 1,4
- Sistema operativo Microsoft Windows Embedded Compact 7 Pro (C7P)
- Software RTM run-time per l’esecuzione di progetti RDT
- Software di REMOTE SERVICE via VPN
- Configuratore user friendly
