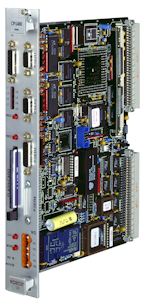

32-bit microprocessor based CPU
The main features are:
- 32bit AMD Am5x86 microprocessor (132Mhz)
- control of systems up to 4 axes
- removable flash eprom card (min. 2 Mbyte) for operating system and user’s program storage
- 4 Mbyte dynamic memory, able to guarantee the processor max operation speed
- 128 Kbyte CMOS ram memory with battery back-up
- # 2 RS232 + #1 RS422/485 serial channels for communication with intelligent devices, particularly the personal computer used as operator’s interface
- # 1 RS422 channel interfacing the Robox remote operator’s interface
- Intrinsic safety watch dog relay (ZH1/457)
- Led’s array to monitor the CPU status
- Teleservice via modem
- Real-time clock calendar
- External connectors provided
Documents
Software
Flash cards
Documents
CPU486 specification and user's instructions. MAN_97031_2_E - February 2003 250.79 KB 243 downloads
